| Item No. |
List of Machines and Equipments : (Item No.1~ No.13) |
Quantity
|
|

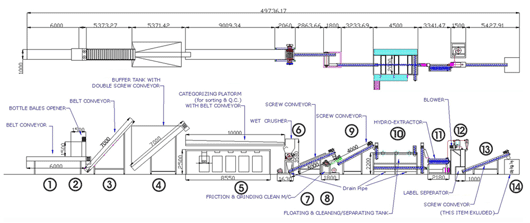

<Line B-2> PET Bottles Recycling Equipments (Capacity : 1.2~1.5 Tons/hour) Total Power : 301.5HP |
1line |
| 1+2 |
Input belt conveyor (SS-41) +Opner |
1set
|
| 3 |
Belt conveyor (SS-41) |
1set
|
| 4 |
Buffer Storage Tank - (Cubic : 1000KG)+ Double Screw Conveyor (SUS-304) |
1set
|
| 5 |
Categorizing platform for Sorting/Q.C. (SS-41) |
1set
|
| 6
|
Waterfed Crusher : SC-700/1000
Fixed Blades :500mm X 100mm X 19mm X 6 pcs (SKH-2)
Rotary Blades:248mm X 100mm X 19mm X 16 pcs (SKH-2) |
1set
|
|
With Additional spare blades one set (SKH-2) |
1set
|
| 7 |
U-Type Double Layer Screw conveyor (SUS-304) |
1set
|
| 8 |
Friction & grinding clean machine |
1set
|
| 9 |
U-Type Screw conveyor (SUS-304) |
1set
|
| 10 |
Floating and Cleaning Tank - 4.5M(L) (SUS-304) |
1set
|
| 11 |
Horizontal Hydro-Extractor : CW-2000HD +Cyclone (SUS-304) |
1set
|
| 12 |
Labels Separating Blower |
1set
|
| 13 |
U-Type Screw conveyor (SUS-304) |
1set
|
| 14 |
Big bag (1M2) excluded. (Buyerself-provided ) |
¡@
|
| 15 |
Electricity Control Box excluded (For item No. 1~13) (Buyerself-provided) |
¡@ |
| 16 |
The piping & wiring events in the scene of installation excluded. (Buyerself-provided) |
¡@
|
| 17 |
Engineers for Installation and Test-Run in buyer's plant excluded (The charges shall be additional) |
¡@
|
