| Item No. |

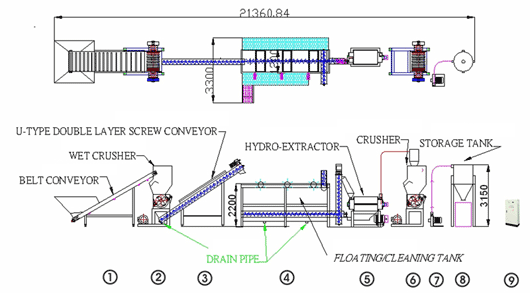

List of Machines and Quipments ( Item No. 1~9) |
One Line Quantity |
| 1 |
Input Belt Conveyor (SS-41) |
1set |
| 2 |
Waterfed Crusher : SC-500/1000
Fixed Blades : 500mm x 100mm x 19mm x 4 pcs (SKH-2)
Rotary Blades : 248mm x 100mm x 19mm x 16 pcs (SKH-2) |
1set |
|
With additional spare blades one set (SKH-2) |
1set |
| 3 |
U-Type Double Layers Screw Conveyor (SUS-304) |
1set |
| 4 |
Floating and Cleaning Tank : 4.5M (L) (SUS-304) |
1set |
|
Base Screw Diameter 250mm, Straight Screw Diameter 250mm |
|
Output Screw Diameter 200mm, Rotary Drum with Blades 3 pieces |
| 5 |
Force Striking Hydro-Extractor : CW-1200HD + Cyclone (SUS-304) |
1set |
| 6 |
Crusher : SC-500/1000
Fixed Blades : 500mm x 100mm x 19mm x 4 pcs (SKH-2)
Rotary Blades : 248mm x 100mm x 19mm x 16 pcs (SKH-2) |
1set |
|
With additional spare blades one set (SKH-2) |
1set |
| 7+8 |
Collecting Material Blower + Stainless Tube
£X5" x 5M |
1set |
|
Storage Tank (Volumes: 1000Litres) (SS-41) |
| 9 |
Linking Operation Electricity Control Boc (Item No. 1~8) |
1PC |
| 10 |
The piping & wiring events in the scene installation excluded
(Buyerself-Provided) |
